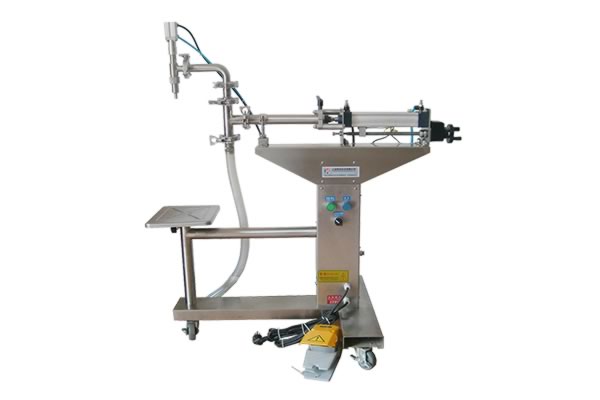

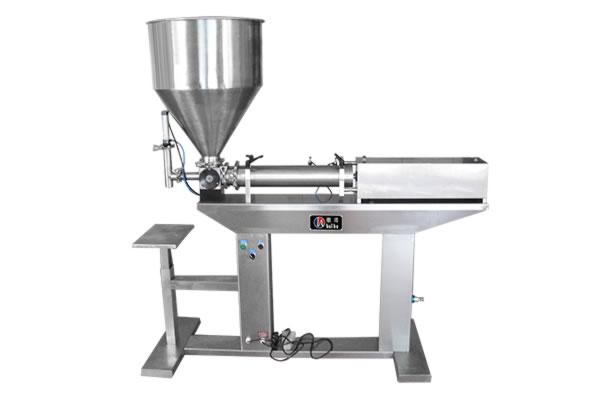

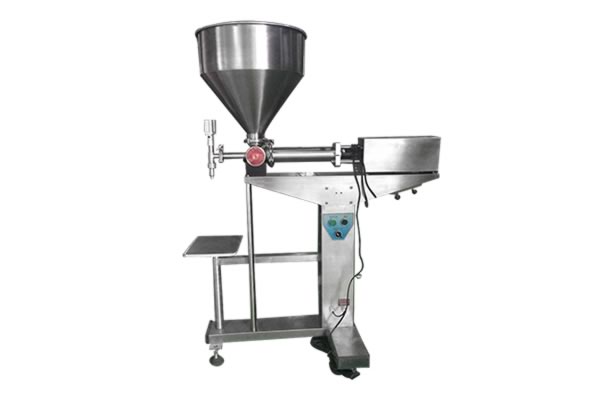

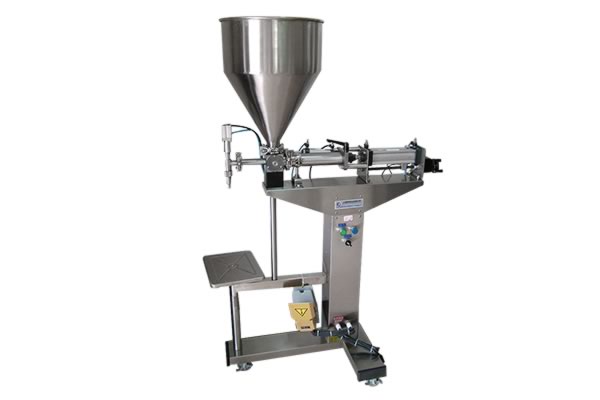

This type of filling machine is well suited for filling and packaging liquid and viscous products, with a precision of ±1%. Outfitted with imported elements and components, the liquid paste filling machine is easy to adjust, and convenient to operate and maintain. Both manual operation and automatic operation are designed to satisfy different manufacture demands. Made from stainless steel, the liquid filling and packaging equipment is easy to dismount and clean. In addition, the liquid and paste filling machine is also compliant with GMP standard.
Scope of Application
A wide application of the liquid filler is found in packing water, juice, source, coffee, tea, milk, edible oil, honey, shampoo, ink, shower gel, cheese, lubricating oil, glue, skin care products, cream and painting.
| Model | GCG-BL100 | GCG-BL250 | GCG-BL500 | GCG-BL1000 |
| Power supply | AC 220V/50HZ | AC 220V/50HZ | AC 220V/50HZ | AC 220V/50HZ |
| Power | 20W | 20W | 20W | 20W |
| Filling range | 20-100ml | 80-250ml | 150-500ml | 350-1000ml |
| Filling precision | ≤±1% | ≤±1% | ≤±1% | ≤±1% |
| Filling speed | 9-17 times/min | 9-16 times/min | 8-12 times/min | 7-12 times/min |
| Air flow | 5.7ft3/min | 5.7ft3/min | 5.7ft3/min | 5.7ft3/min |
| Weight | 35kg | 35kg | 45kg | 45kg |
| Dimensions | 980×550×1450 mm | 1000×550×1550 mm | 1100×550×1600 mm | 1300×780×1650 mm |
| |
|
|
|
