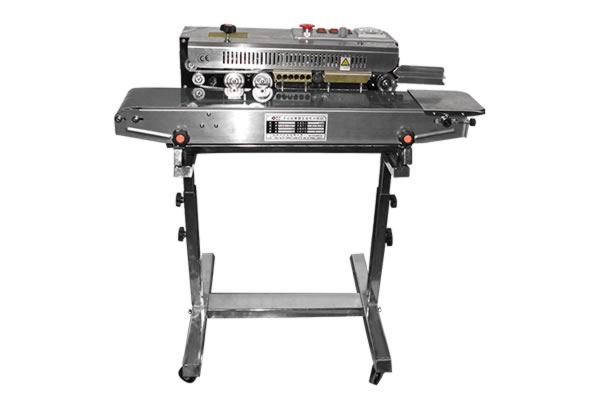

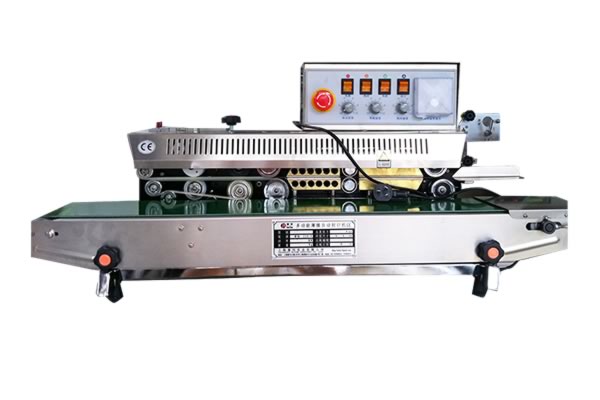

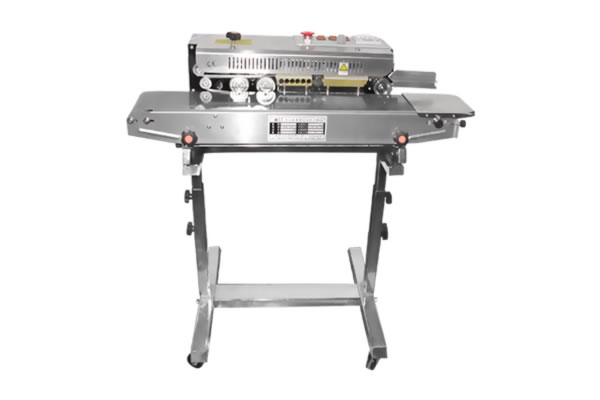

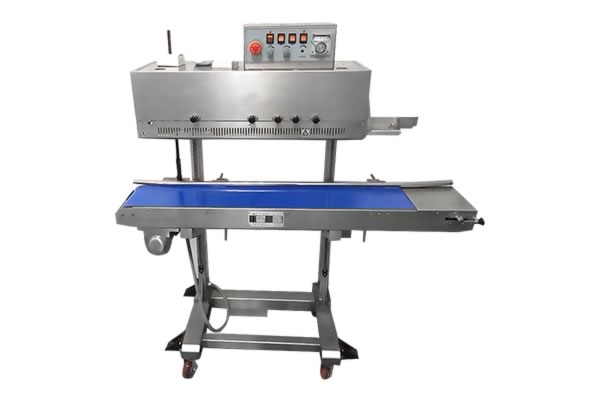

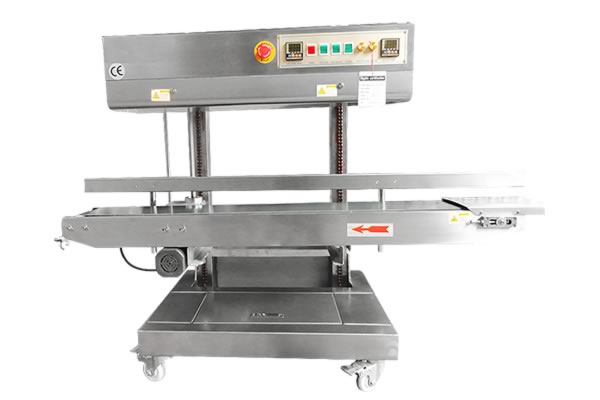

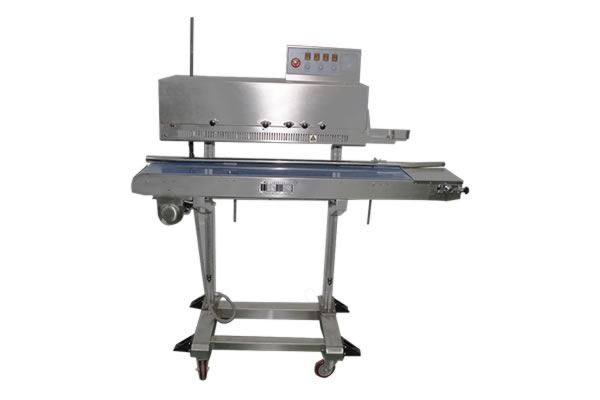

The plastic bag sealing machine adopts electronic thermostatic control and stepless speed regulation. The bag sealer can continuously seal bags of various materials and is suitable for packing small-size bags. If needed, lettering device and counting device can be installed.
Technical Parameters| Model | FRM-770 | FRM-980 | FRM1120 |
| Power supply (V/Hz) | AC220/50 110/60 | AC 220/50 110/60 | AC 220/50 110/60 |
| Motor power | 50 | 50 | 100 |
| Heating power (W) | 300× 2 | 300×2 | 300×2 |
| Lettering heating power (W) | 40×2 | 40×2 | 40×2 |
| Sealing speed (m/min) | 0-12（0-16） | 0-12 (0-16) | 0-12 |
| Sealing width (mm) | 8 | 10 | 10 |
| Temperature control range (℃) | 0-300 | 0-300 | 0-300 |
| Printing method | Solid ink | Solid ink | Solid ink |
| Height from sealing center to conveyor (mm) | 10-40 | 10-40 | 20-80 |
| Conveyor (L×W)(mm) | 95Ｘ180 | 930×153 | 1100×205 |
| Weight of each packed bag (kg) | ≤1 | ≤1 | 2.5 |
| Conveyor bearing capacity (kg) | ≤3 | ≤3 | 7.5 |
| Dimensions (L×W×H)mm | 950Ｘ550Ｘ900 | 950×400×430 | 1100×610×1030 |
| Net weight (kg) | 25 | 29 | 82 |
| |
|
|
