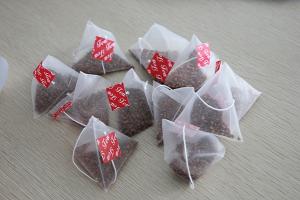

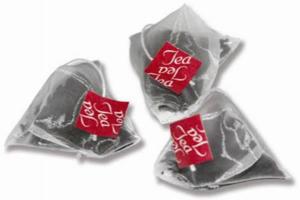

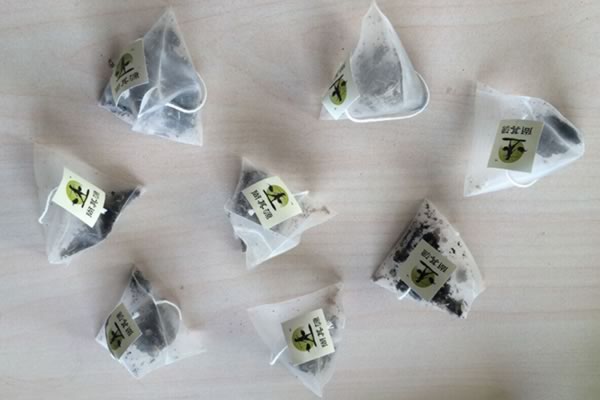

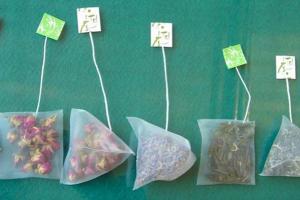

Packing Sample Pictures
| Model | DXDPC02 | DXDPC04 |
| Bag size | Width: 60-80 mm Length: 40-80 mm | Width: 60-80 mm Length: 40-80 mm |
| Packaging speed | 20-30 bags/min | 30-50 bags/min |
| Range of measurement | 1-7 g | 1-7 g |
| Power supply | 220V/2KW | 220V/2.2KW |
| Air supply | 0.8mpa | 0.8mpa |
| Air consumption | 0.6m3/min | 0.6m3/min |
| Machine weight | Approx. 400 kg | Approx. 6 5 0 kg |
| Dimensions (L×W×H) | 1200×920×2060mm | 1600×800×2650mm |
| |
Features

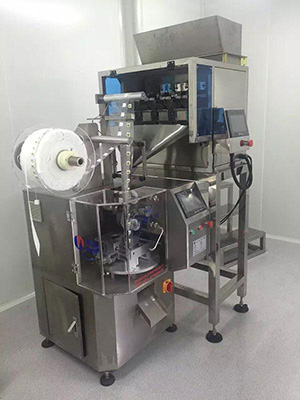

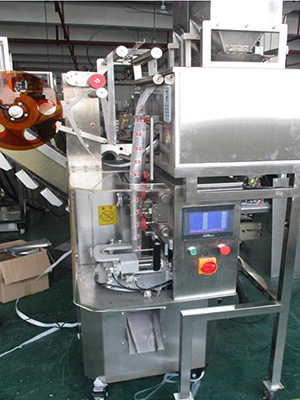

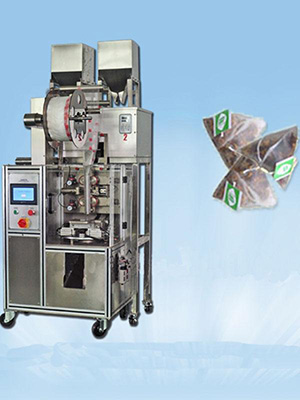

1. The pyramid tea bag filling sealing machine provides pouch packaging and triangle tea bag packaging.
2. Main process procedures including material feeding, measuring, bag making, sealing, cutting, counting and discharging all in one continuous operation.
3. A precise control system driven by servo motor for worry free accuracy during operation.
4. An imported ultrasonic device is used for sealing, leading to a firm seal. An electronic scale is applied for weighing materials with high precision.
5. Packaging tension can be automatically adjusted.
6. The pyramid tea bag packaging equipment will automatically give an alarm and shut down if a malfunction occurs.
Applications
This filling and sealing machine is used to produce triangular tea bags that are designed to steep for less time and release all of their delicious flavors and health benefits.
