Packing Sample Pictures
| Model Items | HP-250D | HP-320D | HP-350D | HP-400D | HP-450D | HP-600D |
| Film width | Max. 250 mm | Max. 320 mm | Max. 350 mm | Max. 400 mm | Max. 450 mm | Max. 600 mm |
| Bag length | 90-220mm or 150-330mm | 90-220mm or 150-330mm | 99-220mm or 150-330mm | 130-320mm | 130-450mm | 120-450mm |
| Bag width | 30-110mm | 50-160mm | 50-160mm | 30-150mm | 50-180mm | 50-200mm |
| Product height | Max. 55mm | Max. 50mm | Max. 60mm | Max. 65mm | Max. 75mm | Max. 10-80mm |
| Film roll dimeter | Max. 320mm | Max.320mm | Max. 320mm | Max. 320mm | Max. 320mm | Max. 320mm |
| Packaging speed | 40-230bags/min | 40-230bags/min | 40-230bags/min | 40-180bags/min | 30-150bags/min | 20-80bags/min |
| Power supply | 220V. 50 / 60Hz. 2.4KVA | 220V. 50 / 60Hz. 2.6KVA | 220V. 50 / 60Hz. 2.6KVA | 220V. 50 / 60Hz. 2.8KVA | 220V. 50 / 60Hz. 2.6KVA | 220V. 50 / 60Hz. 3.6KVA |
| Dimensions | (L)3770×(W)670×(H)1450mm | (L)3770×(W)720×(H)1450mm | (L)4020×(W)745×(H)1450mm | (L)4020×(W)800×(H)1450mm | (L)4020×(W)800×(H)1450mm | (L)4380×(W)970×(H)1500mm |
| Weight | 700kg | 800kg | 850kg | 900kg | 900kg | 1160kg |
| |
|
|
|
|
|

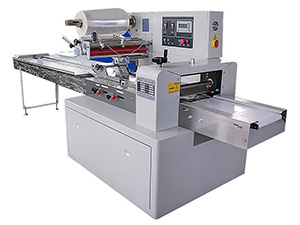

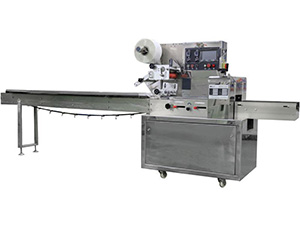

Features
1. With the assistance of double-motor, Panasonic double-transducer and Panasonic PLC, the bag length can be freely adjusted, with no test run and film waste. A lot of time and film is thus saved.
2. The button-type human-computer interface provides Chinese-English menu, making parameter setting convenient and quick.
3. Self-detection function ensures malfunctions and faults are clearly shown.
4. The photoelectric sensor tracks film closely, allowing for accurate sealing and cutting.
5. The temperature is controlled by PID in order to suit different packaging materials
6. The positioning system of this flow pack wrapper is sensitive and quick, with no film sticking or film waste.
7. The drive system has a compact structure and provides reliable performance and convenient maintenance.
8. Functional software is used for machine control, simplifying function adjustment and technic upgrade.
Applications
The flow pack wrapping machine is well suited for packaging food, daily necessities, medicine, disposable products, hardware products, plastic products, toys, stationeries, car components and industrial parts.
