Packing Sample Pictures
Vacuum packing is a packaging method that removes air from the bag before sealing, to realize a vacuum environment inside the bag. By doing so, the packed product will be isolated from oxygen and show a good resistance to humidity, rust, mould, corrosion, bug and contamination. The storage time and refreshing time is thus extended, simplifying the transport work.

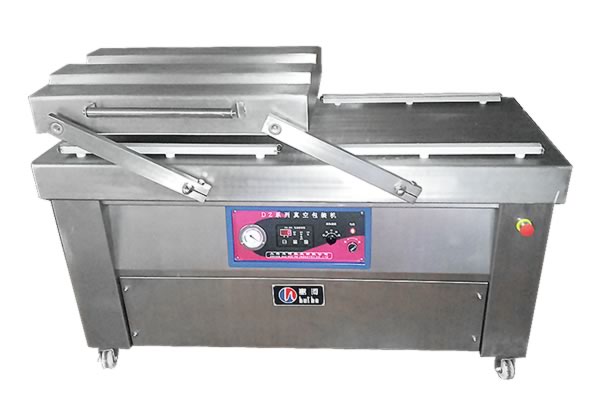

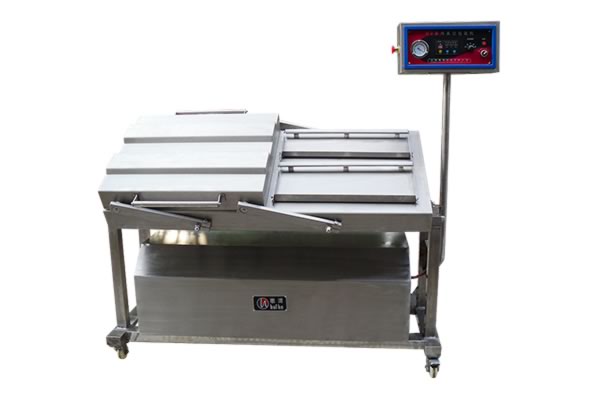

The double chamber vacuum packaging machine provided by our company is appropriate for using plastic composite film and aluminum foil laminated film to pack food, fruit, local products, medicine, chemicals, precise equipment, garment, hardware, electronic products and other solid, powder and liquid products.
Technical Parameters of Vacuum Packaging Machine with Double Chamber| Model | DZ-500/2S | DZ-600/2S | DZ-700/2S | DZ-800/2S |
| Power supply | 380V 50HZ 2Kw | 380V 50HZ 2.2Kw | 380V50HZ 2.7Kw | 380V 50HZ 4Kw |
| Pressure | ≤1Kpa | ≤1Kpa | ≤1Kpa | ≤1Kpa |
| Vacuum chamber size | 620×540×125mm | 720×660×115mm | 720×600×140mm | 920×780×220mm( bar spacing: 530mm) |
| Sealing bar size | 500×(8-10)mm×4 bars | 600×(8-10)mm×4 bars | 700×10/2 2×2 bars | 800×(8-10)mm×4 bars |
| Packaging capacity | 90-360 times/h | 90-360 times/h | 180-300 times/h | 1-5 times/min |
| Vacuum chamber | 2 | 2 | 2 | 2 |
| Machine weight | 230kg | 300kg | 380kg | 380kg |
| Machine dimensions | 1220×680×900mm | 1425×720×950mm | 1425×720×950 | 1830×910×1100mm |
| |
|
|
